LM-SP144E-HD4K2K |
|

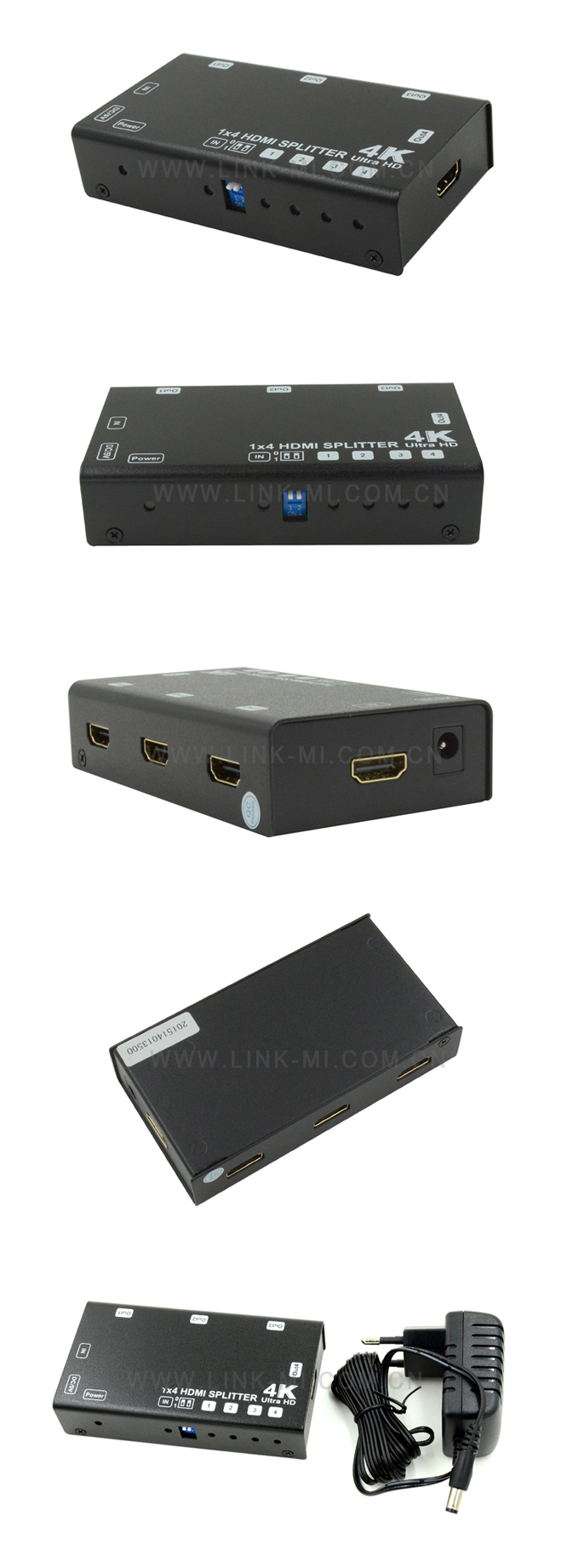

| LINK-MI LM-SP144E-HD4K2K 1x4 HDMI Splitter Supports 4Kx2K (3840x2160@60Hz YUV 4:2:0) |
| |
Introduction:

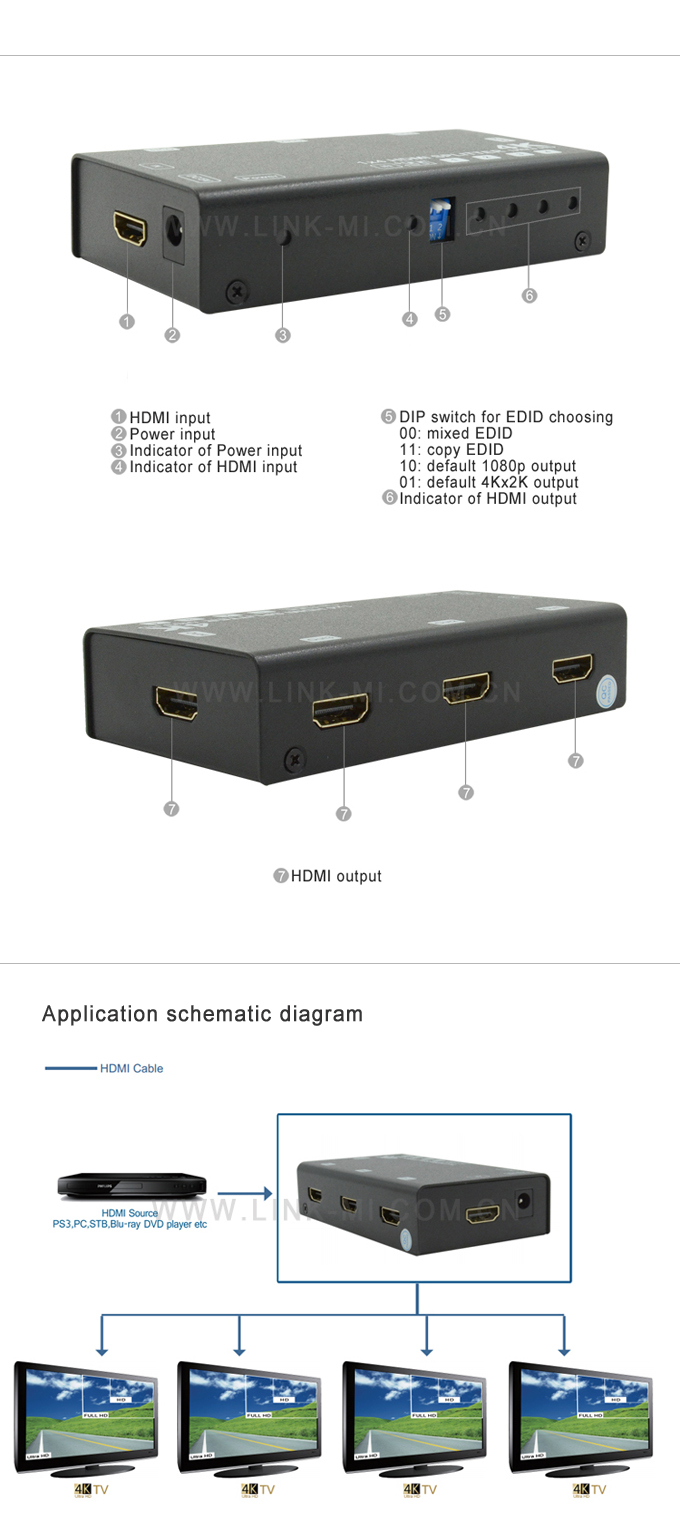

1.Simultaneously displays an Ultra Hi-Def source on up to four Ultra HD displays. 2.Supports resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.3.Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.4.Supports 36 bit Deep Color.5.Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .6.Supports HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution.7.HDCP Compliant.8.Support 3D. |
|
|
| |
|
|
|
|
Specification
|
Operating Temperature Range |
-5 to +35℃(+23 to +95℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Bandwidth frequency |
10.2Gbps |
|
Input ports |
1xHDMI(female) |
|
Output ports |
4xHDMI outputs(female) |
|
Resolution outputs |
up to 4Kx2K(3840x2160@60Hz YUV 4:2:0) |
|
Dimensions(LxWxH) |
115x62x25mm |
|
Power consumption |
1W(MAX) |
|
Transmission Distance |
15m(Maximum)over standard HDMI cable/26AWG |
|
Net Weight |
210g |
Packing Contents
1. 1pcs 1x4 HDMI Splitter
2. 1pcs DC 5V/1A Power Adapter
3. 1pcs User Manual |
 |
|
|
|
|
